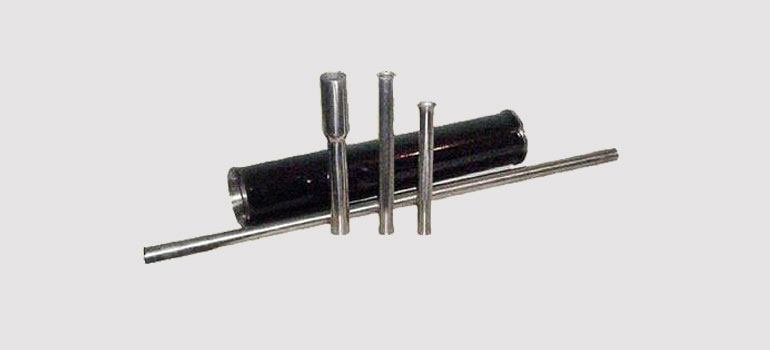

We are one of the leading best quality Ferrule Tube Expanders Manufacturer in India Mumbai. The Ferrule Tube Expanders is manufacture using best quality raw material, which we procures from most reliable vendors. Ferrule Tube Expanders is tube end insert for protecting a tube end or restore a tube back to service. It is short length of tube as per the design and specification specially designed to inserted into at the end of pre-heater or heat exchanger tube in trying to salvage the unit without necessity of tube replacement.
We undertake all types of ferrule forming and machining as per customers need.
Tube swaging id OD in control dimensions.
1. Solid taper Plug
2. Blind hole expansion plug where welding of plug to tube sheet not permitted.
The ferrule is a useful tool in conductor assembly and wiring. Using individual sleeves avoids potential separation of wires, enabling effective and first-time reliable process. A ferrule is use together with the connector that associates the fiber link either to another link or to a transmitter or collector. The ferrule keeps the filaments precisely adjusted inside the connector. Ferrules can made of glass, plastic, metal, or artistic material. Earthenware is presently viewed as the best material for various reasons. For instance, earthenware bonds well to glass and its development coefficient is near that of the glass strands, making it naturally steady. They are often narrow circular rings made from metal or less commonly, plastic. Ferrules are also often called eyelets or grommets within the manufacturing industry. Most ferrules consist of a circular clamp used to hold together and attach fibers, wires, or posts, generally by crimping, swaying, or otherwise deforming the ferrule to permanently tighten it on to the parts that it holds. It must a plastic sleeve preventing the ends of shoelaces from unraveling is call the eaglet. The metal sleeve which is crimp to hold the eraser in place on pencils. The metal band that binds the bristles or hair of a brush to its handle. The metal ring which holds a chisel blade's tang to the handle In fiber optic terminations, glass or plastic fibers is bond to precision ferrule connectors (FCs) it is also described as fiber channel connectors, and polished for splitting or connecting two fibers together. The metal spike at the end of the shaft of an ice axe. The margin of a cast crown that stabilizes root-canal-treated teeth in restorative dentistry a ferrule, in respect to dentistry, is a band that encircles the external dimension of residual tooth structure, like the metal bands that exist around a barrel. This is also known as the Ferrule Effect.
An electric wire ferrule is sometimes end terminal, it is a metal tube crimped over stranded wire to secure the strands within a screw terminal. Electrical insulation may included to protect any exposed part of the wire not completely inside the screw terminal post. Stranded wire is prefers for most electrical applications because it is more reliable than solid wire. It is more flexible, and durable because repeated bending will not cause it to break. Stranded wire can more difficult to end, because the individual strands tend to separate after insulation is remove. By placing the end of the stranded wire in a ferrule, the strands stay together... A ferrule is also used together with the connector that connects the fiber cable either to another cable or to a transmitter or receiver. The ferrule keeps the fibers accurately aligned within the connector. Ferrules can made of glass, plastic, metal, or ceramic material. Ceramic is now considered the best material for a number of reasons. For example, ceramic bonds well to glass and its expansion coefficient is close to that of the glass fibers, making it environmentally stable. We could go on naming components known as ferrules but for this, the ferrules we are referring to are the ones used for wire termination. These "wire ferrules" is use for electric or electronic wiring and for the specific purpose of providing a very nice, clean and safe termination for wire strands, which in turn offer an efficient and safe connection to a terminal block. The ferrules provided by Automation Direct, consist of a tin-plated copper tube with a polypropylene-fluoropolymer insulating collar at the cable insertion end. These ferrules are available in a variety of collar colors and tube sizes designed to accommodate wires ranging. The wire is stripe to the about length of the ferrule tube and inserted into the ferrule while ensuring that all wire strands slide into the tube. Then the ferrule is crimp on the metal tube part with a crimp tool leaving a nice tight hold on the wire strands and providing an easy way to insert the crimped part into a terminal block to easily and effectively secure it with the set screw.
The crimping tools are available in hexagonal or square profile and offer crimps that have the same cross-sectional area. Square crimps fit better in rectangular holes while hexagonal crimps fit better in round holes. These wire ferrules are also available in twin wire models. The twin wire ferrules have a larger insulated collar that allows you to insert two wires into the ferrule tube to crimped tightly and securely together using a properly sized ferrule must allow space for both wires. Ferrule components is must not only for ideal connections but also for improving installed connections. Ceramic materials give the highest levels of dimensional control as well as high durability.
